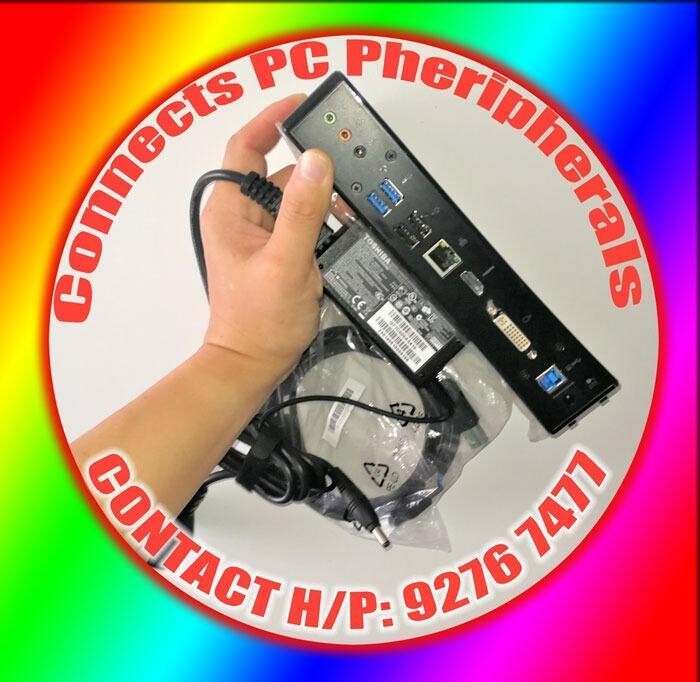

Toshiba Dynadock U3.0 Docking Station - Boost Your Tech Game!
Check out this sleek Toshiba Dynadock U3.0 Docking Station in mint condition, perfect for enhancing your laptop, notebook, or desktop connectivity. Increase functionality and plug in more appliances seamlessly.
Key Features:
- Equipped with 4 x USB 3.0 ports (2 "Always-On" Sleep and Charge ports)
- Gigabit Ethernet port for network connectivity
- 2 x USB 2.0 ports, HDMI, DVI-I dual link type; video out ports
- 5 x 3.5mm microphone and headphone jacks
- Supports display resolutions up to 2048 x 1152
- 5.1 channel audio support
This Toshiba Dynadock U3.0 Docking Station With AC Power Adapter.
Technical Details:
- PC connection: USB 3.0 / USB 2.0
- Resolution: Single - 2048 x 1152, Dual Head - 2048 x 1152
- Supported video modes: Mirror Desktop, Extended Desktop, Primary Display
- Other interfaces: DVI-I to VGA adaptor, Gigabit LAN
- Additional features: Toshiba USB Sleep-and-Charge technology, security lock slot
- Power supply: AC 100 - 240V, 19V / 2.37A
- System requirements: USB 3.0 or 2.0 port (3.0 recommended for optimal performance)
- Dimensions: 114 x 130 x 233mm (including base)
- Weight: 530g (including base)
- Colour: glossy black
**Toshiba Dynadock U3.0 User Guide:**
1. **Connect the Dynadock:**
- Plug the provided USB cable into your laptop's USB port.
- Connect the other end of the USB cable to the Dynadock's USB port.
2. **Video Output:**
- For HDMI: Connect an HDMI cable from the Dynadock's HDMI port to your monitor or TV.
- For DVI-I: Use a DVI-I cable from the Dynadock's DVI-I port to your monitor.
3. **Audio Setup:**
- To use the Dynadock's audio ports, plug your headset or speakers into the respective audio jacks on the Dynadock.
4. **Microphone Connection:**
- Connect your microphone to the Dynadock's microphone port if needed.
5. **Power Up:**
- Plug the Dynadock's power adapter into an electrical outlet.
- Ensure the power indicator on the Dynadock lights up.
6. **Driver Installation (if required):**
- Visit the Toshiba website to download and install any necessary drivers for your operating system.
7. **Enjoy Extended Connectivity:**
- Your laptop screen should now be mirrored or extended to the external display.
- Enjoy enhanced audio and video through the Dynadock.
8. **Eject Safely:**
- Before unplugging, safely eject the Dynadock through your operating system to avoid data loss.
► The Toshiba Dynadock U3.0 weighs 1.18 pounds. It measures 4.5 in x 5.1 in x 9.3 in with the base.
**Note:** Ensure your laptop supports the Dynadock and has the required ports. Refer to the user manual for specific details on compatibility and troubleshooting.
